What Is Air Curtain Refrigeration?
Air curtain refrigeration is the core technology that allows open display refrigerators—such as multideck chillers—to maintain low temperatures without using doors.
Instead of a physical barrier, these systems create a high-velocity stream of cold air across the front opening. This airflow forms an invisible shield that separates the refrigerated interior from the warmer ambient environment.
In simple terms:
It’s not “open air” — it’s a controlled air barrier system.
How Does an Open Air Merchandiser Work?
The working mechanism is a continuous recirculating airflow loop:
1. Cold air discharge (top outlet)
- Fans push chilled air from the top front grille
- This initiates the air curtain
2. Air curtain formation
- Air flows downward in a uniform sheet
- Creates a thermal separation layer
3. Return air intake (bottom)
- Air is captured at the bottom grille
- Prevents cold air from spilling into the store
4. Re-cooling process
- Air passes through the evaporator coil
- Heat is removed and air is cooled again
This cycle repeats constantly, ensuring temperature stability across shelves.
Why Air Curtains Work: Controlling Heat Infiltration
The main challenge in open refrigeration is infiltration—the entry of warm ambient air.
Without an air curtain:
- Warm air enters freely
- Cold air escapes rapidly
- Cooling load increases dramatically
With an air curtain:
- High-speed airflow pushes back warm air
- A temperature gradient layer is formed
- Air mixing is reduced
Key physics principles:
- Velocity barrier: Air momentum blocks intrusion
- Laminar flow: Smooth airflow reduces turbulence
- Density difference: Cold air remains concentrated
Result: Controlled cooling in an “open” environment.
What Is Open Display Case Infiltration?
Infiltration refers to the unwanted mixing of warm air into the refrigerated zone.
Common causes:
- HVAC airflow blowing across the cabinet
- Frequent customer movement
- Improper cabinet positioning
- Weak or unstable air curtain
Operational impact:
- Higher energy consumption
- Product temperature fluctuation
- Frost or condensation issues
- Increased compressor cycling
In real retail environments, open cases typically consume 20–50% more energy than closed-door units due to infiltration.
Key Components of a Multideck Air Curtain System
To maintain an effective air curtain, several design elements are critical:
1. Honeycomb air outlet
- Straightens airflow
- Maintains laminar structure
2. Fan system
- Controls airflow velocity and stability
3. Cabinet geometry
- Influences airflow path and retention
4. Rear airflow channel
- Ensures uniform cooling across all shelves
5. Night curtain (energy optimization)
- Used during off-hours
- Reduces energy loss by 10–25%
What Breaks the Air Curtain? (Critical for B2B Buyers)
Poor placement
- Near store entrances
- Under strong HVAC vents
- In cross-draft zones
Overstocking shelves
- Blocks airflow channels
- Disrupts circulation
Lack of maintenance
- Dirty coils reduce cooling efficiency
- Fan degradation weakens airflow
Incorrect configuration
- Improper fan speed or temperature settings
These issues directly impact:
- Energy cost
- Product freshness
- Equipment lifespan
Open Air vs Glass Door: Strategic Use Cases
Air curtain refrigeration is not just an engineering solution—it’s a retail strategy tool.
Open display advantages:
- Higher impulse purchase rates
- Faster customer access
- Better product visibility
Trade-offs:
- Higher energy consumption
- Greater sensitivity to environment
Typical application strategy:
- Open multidecks: dairy, beverages, grab-and-go

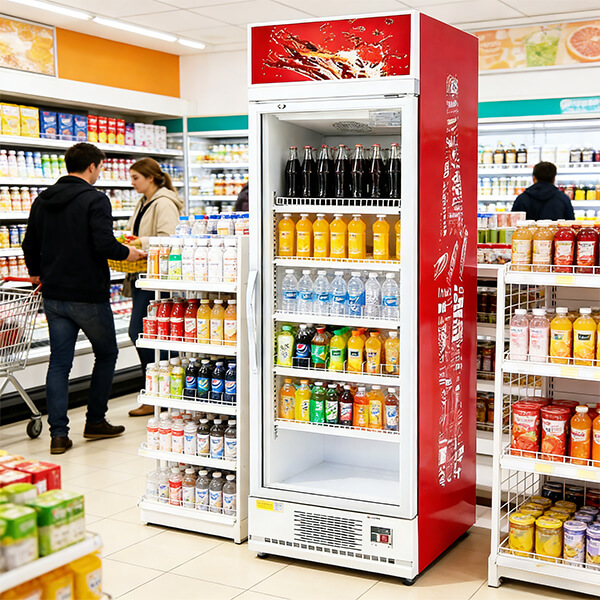

- Glass door units: frozen foods, low-turnover items
Practical Insights for Commercial Buyers
If you’re targeting supermarkets, wholesalers, or chain stores:
1. Position as a sales driver
Not just refrigeration—merchandising performance equipment
2. Emphasize efficiency upgrades
- Night curtains
- High-efficiency fans
- Smart defrost systems
3. Educate on installation
- Placement = performance
- HVAC coordination is essential
4. Sell ROI, not just specs
Balance:
- Increased sales
- Energy cost impact
Conclusion
Air curtain refrigeration enables open display refrigerators to function efficiently by:
- Creating a controlled cold air barrier
- Minimizing heat infiltration
- Maintaining continuous airflow circulation
It transforms refrigeration from a passive cooling system into an active airflow engineering solution—directly influencing energy efficiency, product quality, and retail sales.
